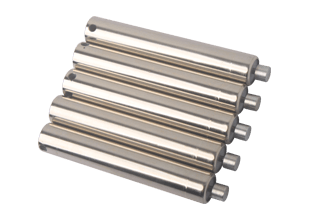

CR15-98-3.0-S/F Hydraulic Damper
Speed reduction without free travel or with free travel
Damping force 5N to 150N, Max stroke 75mm.
Damping is usual in sliding doors. Coricher CR15-98-3.0-S/F is a door hydraulic buffer. It is not only maintenance-free, but also self-contained. These buffers prevent impact when the doors are closing or opening, which will make the feel of sliding doors more refined, more durable, generating a longer service life.
Different damping types can be selected: push-in damping, pull-out damping, spring return damping, bi-directional damping, and free travel damping for the final movement, depending on your needs.
Coricher high-performance door hydraulic cylinder are also used in motion doors, sliding drawers, garbage cans and so on.
TECHNICAL DATA
Max stroke:
75mm
Tube length:
98mm
Max compression force:
150N
Outer body diameter:
Ø15mm
Piston rod diameter:
Ø3mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
