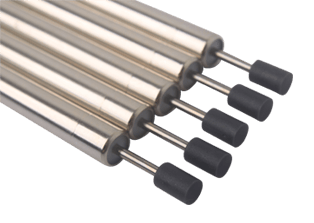

CR12-60.3-3.0-S/F
Damping control without free travel
Max. force: 200±2N
Max. stroke: 70mm
Damping technology applied to doors to control speed creates a sense of superior quality. Coricher CR12-60-3.0-S/F hydraulic linear dampers are door slam preventers. They prevent collisions between the door components and eliminate unnecessary noise.
Depending your requirements, you can choose one or some from the following different damping types: extension damping, compression damping, spring return damping and bi-way damping.
Coricher multi-function hydraulic dampers can be applied to trash cans, motion doors, sliding drawers and multiple other applications.
TECHNICAL DATA
Max stroke:
40mm
Tube length:
60.3mm
Max. force:
200±2N
Outer body diameter:
Ø12mm
Piston rod diameter:
Ø3mm
★Stable force performance:
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
