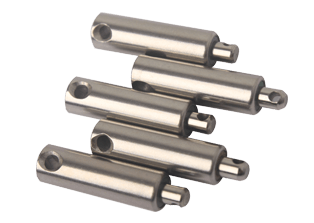

CRHD1-8-26.7-4.0-S/F Hydraulic Damper
Hydraulic dampers for hinge
Max stroke 7.5mm.
Coricher CR8-26.7-4.0-S/F hydraulic dampers with stable damping performance, make cabinet door hinges more functional. Once the hydraulic dampers are installed, hinges will have a perfect damping effect, with a durable working life.
As one of the best professional hydraulic damper factories, we are able to provide customized solutions for special and specific applications.
TECHNICAL DATA
Max stroke:
7.5mm
Tube length:
26.7mm
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø4mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Doors damping
