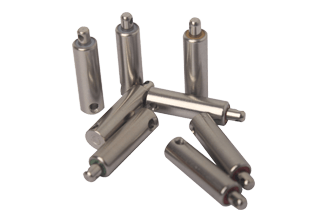

CRHD-8-26.7-4-S/F Damper for Hinge
Hydraulic piston for hinge
Max stroke 7.5mm.
Coricher CR-8-29.2-4.0-S/F hydraulic pistons were designed for cabinet door hinges to ensure doors could close slowly and silently. They are maintenance-free, self-contained and sealed units.
Damping cylinders are hydraulic fittings which instantly improve your hinge performance level and living environment significantly. Coricher hydraulic pistons are ideal for matching with any home appliance motion control needs.
As one of the best professional hydraulic fittings suppliers, we not only supply standard hydraulic cylinder models, we can also provide customize specific solutions for individual applications.
TECHNICAL DATA
Max stroke:
7.5mm
Tube length:
26.7mm
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø4mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Doors damping
