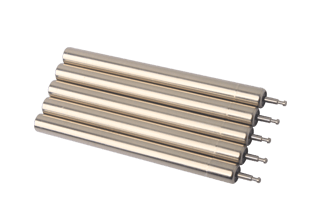

CR07-80-2.0-S/F Linear Damper
Linear damping
Max. force: 40±2N
Max. stroke: 50mm
It is now necessary to use damping technology for furniture. Coricher CR07-80-2.0-S/F soft close adapters are the perfect choice to slow down the moving components. and, they are maintenance-free as well as easy to attach.
Different damping types can be adopted with Coricher dampers; compression damping, extension damping, spring return damping and both directional damping, depending on your requirements.
Coricher high-quality blumotion soft close adapters can be applied to sliding drawers, sliding doors, lids and other applications.
TECHNICAL DATA
Max stroke:
50mm
Tube length:
80mm
Max. force:
40±2N
Outer body diameter:
Ø7mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
