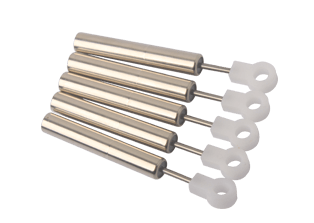

CR08-49-2.0-S/F Hydraulic Damper
Slowing down lids without free travel
Max. force: 80±2N, Max. stroke: 26mm.
Coricher CR08-70-2.0-S/F linear dampers are hydraulic fittings for slowing down moving parts. They eliminate closing impact and create a silent and safe living or working environment for you. What’s more, they are maintenance-free, self-contained and sealed units.
We can also provide customized solution for your application requirements.
Coricher hydraulic dampers are high-quality hydraulic fittings used for sliding drawers, motion doors, lids and multiple other applications.
TECHNICAL DATA
Max stroke:
26mm
Tube length:
49mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Lids
