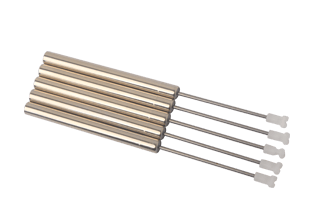

CR7.8-86.6-2.0-S/F Hydraulic Damper
Damping control without free travel
Max. force: 80±2N Max. stroke: 63mm.
Coricher CR7.8-86.6-2.0-S/F are perfect soft close bumpers to reduce the speed of moving drawers. They will give your drawers a classier feel, make them more durable and give them longer lifetime. Our soft close bumpers are maintenance-free and easy to assemble.
Damping has now become a standard feature for drawers, and our dampers are designed for meeting all your requirements. We can provide the perfect solution, whatever your application is.

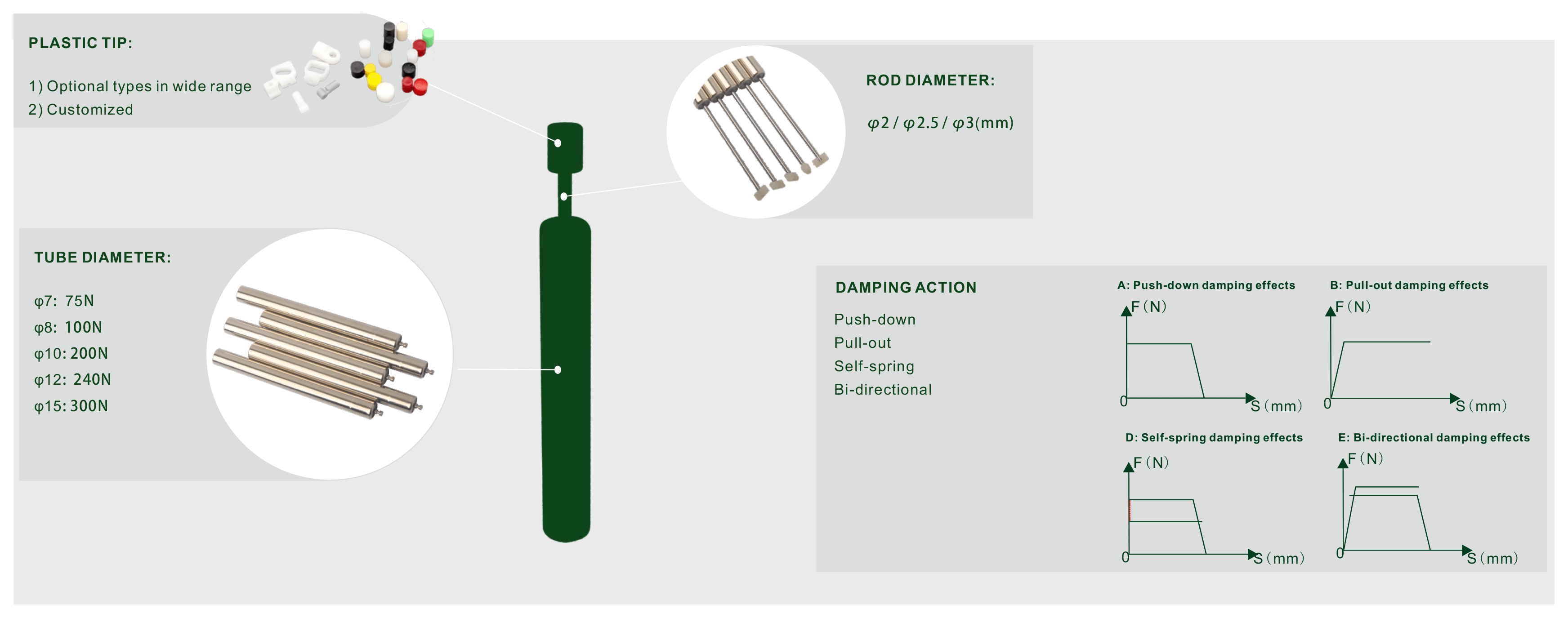

Different damping types include push-in damping, pull-out damping, spring return damping and bi-directional damping.
Coricher soft close bumpers are used in sliding drawers, motion doors, lids and many other applications where buffering is needed.
TECHNICAL DATA
Max stroke:
63mm
Tube length:
86.6mm
Max. force:
80±2N
Outer body diameter:
Ø7.8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
