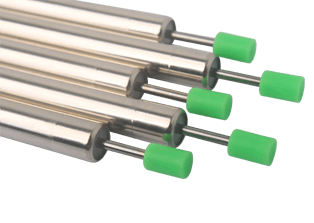

CR12-55-3.0-S/F Hydraulic Damper
Reliable lid damping without free travel
Max. force: 200±2N
Max. stroke: 35mm
Coricher CR12-55-3.0-S/F linear hydraulic damping cylinders are the very best hydraulic components for motion control.
Damping has now become an expected standard feature for drawers. Our hydraulic damping cylinders are high quality to match all your expectations. We can also provide you customized solutions, whatever your application needs.
Coricher hydraulic damping cylinders are used for sliding drawers, motion doors, lids and multiple other applications. They are maintenance-free, self-contained and sealed units.
TECHNICAL DATA
Max stroke:
35mm
Tube length:
55mm
Max. force:
200±2N
Outer body diameter:
Ø12mm
Piston rod diameter:
Ø3mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Lids
