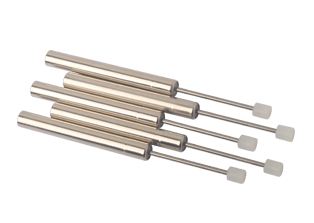

CR08-60-2.0-S/F Hydraulic Damper
Speed control without free travel
Max. force: 80±2N
Max. stroke: 40mm
Coricher, as a professional hydraulic damper supplier and manufacturer. We produce and supply many multipurpose dampers for home and office appliances. The CR08-60-2.0-S/F damper can be used as lid stop dampers, regulating the closing motion of lids, thus eliminating noise and protecting hands and fingers. We can also provide customized damping solutions for your products.
As a Coricher hydraulic damper supplier, our dampers are used for sliding drawers, motion doors, lids and many more options.
TECHNICAL DATA
Max stroke:
40mm
Tube length:
60mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
