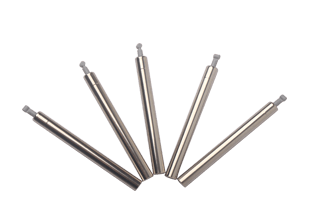

CR10-97-2.5-S/F Hydraulic Damper
Linear damping control without free travel
Max. force: 130±2N, Max. stroke: 77mm.
Coricher high-quality CR10-97-2.5-S/F hydraulic soft close screen door piston utilizes advanced deceleration technology for slowing down moving parts. They are perfect for controlling the speed of sliding doors, preventing slamming when the doors are closing or opening, and they are easy to assemble as well as being maintenance-free.
Different damping types can be selected to meet your requirements. The damping types include compression damping, extension damping, spring return damping or bi-directional damping.
Coricher multi-function hydraulic dampers are used in sliding doors, drawers, trash cans, etc.
TECHNICAL DATA
Max stroke:
77mm
Tube length:
97mm
Max. force:
130±2N
Outer body diameter:
Ø10mm
Piston rod diameter:
Ø2.5mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
