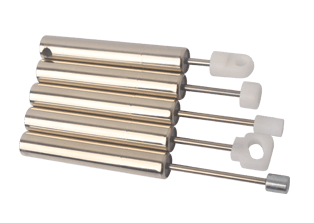

CR10-61-2.5-S/F Hydraulic Damper
Motion control without free travel
Damping force 2.5N to 80N, Max stroke 41mm.
Coricher CR10-61-2.5-S/F hydraulic piston dampers are used for deceleration of motion; are maintenance-free, self-contained and sealed units.
CORIHCER standard hydraulic piston models are of the finest quality to match your needs. We can also provide individually customized hydraulic piston dampers.
Coricher hydraulic pistons are used for sliding drawers, motion doors, lids and multiple other applications.
TECHNICAL DATA
Max stroke:
41mm
Tube length:
61mm
Max compression force:
80N
Outer body diameter:
Ø10mm
Piston rod diameter:
Ø2.5mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Lids
Sliding doors
Lids
