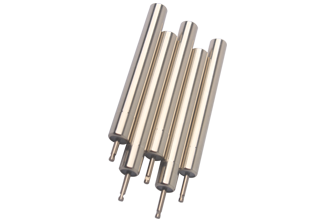

CR08-82-2.0-S/F Linear Damper
Damping technology for speed reduction without free travel or with free travel
Max. force: 80±2N
Max. stroke: 62mm
Quality sliding furniture drawers need soft-close or soft-open dampers. Coricher CR08-82-2.0-S/F soft-closing slow close drawer retrofit are ideal for slowing down the moving of moving furniture components, are maintenance-free and easy to assemble.
Different damping types can be adopted with Coricher hydraulic dampers, from compression damping, extension damping, spring return damping, bi-directional damping, to free-travel damping for end-stage movement, depending on your requirements.
Coricher high-quality soft-close hydraulic dampers can be used for drawers, motion doors, lids and for many other applications.
TECHNICAL DATA
Max stroke:
62mm
Tube length:
82mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
