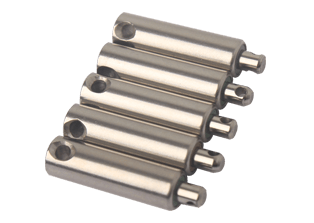

CRHD-8-29.2-4.0-S/F Damper for Hinge
Hydraulic cylinder for hinges
Max stroke 7.5mm.
The Coricher CR-8-29.2-4.0-S/F hydraulic cylinder was designed for cabinet door hinges to enable cupboard and cabinet doors to close smoothly and silently. They are maintenance-free, self-contained and sealed units.
A Damping cylinder is a hydraulic component which improves your hinge quality and movement of cabinet and cupboard doors. Coricher hydraulic cylinders are a quality component designed to perfectly meet your needs.
As respected professional hydraulic dampers suppliers, we not only supply standard hydraulic cylinder models, but we can also customize specific solutions for individual applications.
TECHNICAL DATA
Max stroke:
7.5mm
Tube length:
29.2mm
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø4mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Doors damping
