CR08-68-2.0-S/F Linear Damper
Deceleration technology for furniture – multipurpose hydraulic dampers
Max. force: 80±2N
Max. stroke: 38mm
Deceleration technology is now commonplace for drawers. CR08-68-2.0-S/F Coricher linear cylinder dampers are maintenance-free and ready-to-install, and they are ideal for slowing down the closing or opening of drawers.

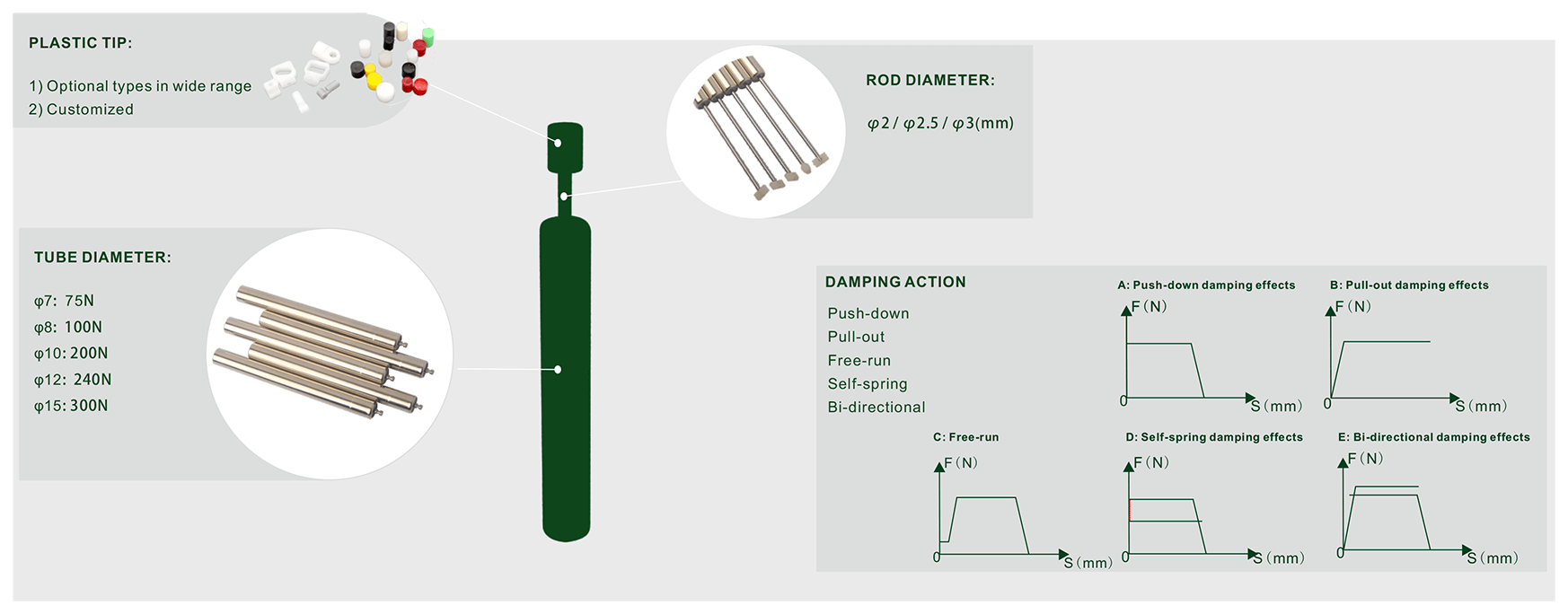

Coricher cylinder damper offer a variety of defferent damings, including compression damping, extension damping, spring return damping, bi-directional damping, and free travel damping for the final section of a closing, depending on your requirements.
Coricher high-quality Hydraulic cylinder dampers are used in sliding drawers, motion doors, lids and more.
TECHNICAL DATA
Max stroke:
38mm
Tube length:
68mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
