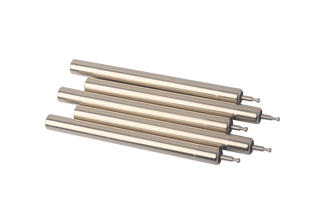

CR07-82.5-2.0-S/F Linear Damper
Soft close drawer dampers without/with free-run
Max. force: 40±2N, Max. stroke: 60mm.
We are one of the best hydraulic damper suppliers, our advanced and precise damping technology ensure our dampers provide optimum performance. Coricher CR07-82.5-2.0-S/F linear soft closing drawer dampers are independent hydraulic components for decelerating drawer motion. Free-run will ensure total closure, with no danger of trapped fingers.
Coricher dampers have different damping type: push-in damping, pull-out damping, spring return damping, bi-directional damping, all available depending on your requirements.
Coricher high-performance hydraulic damper suppliers, will be your perfect partner for sliding drawer damping, motion door damping, lid damping, and more.
TECHNICAL DATA
Max stroke:
60mm
Tube length:
82.5mm
Max. force:
40±2N
Outer body diameter:
Ø7mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Stainless steel
Piston rod material:
Stainless Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
