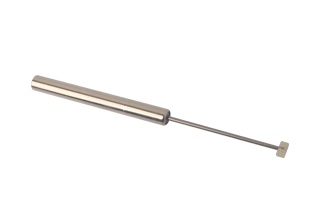

CR08-77-2.0-S/F Hydraulic Damper
Hydraulic linear dampers for speed reduction without free travel
Max. force: 80±2N
Max. stroke: 57mm
Coricher CR08-77-2.0-S/F are perfect hydraulic linear dampers for reducing the speed of moving drawers. They not only give doors a classier feel, these dampers help make drawers more durable and thus have a longer lifetime. In controlling the closing motion of drawers, gone are the days of painfully trapped fingers! What’s more, they have the advantage of being maintenance free and easy to assemble.
We can provide you with perfect solution, whatever the application.
Different damping types include: push-in damping, pull-out damping, spring return damping and bi-directional damping, depending on your requirements.
Coricher soft closing hydraulic linear dampers are used in sliding drawers, motion doors, lids and many other applications where buffering is needed.
TECHNICAL DATA
Max stroke:
57mm
Tube length:
77mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
