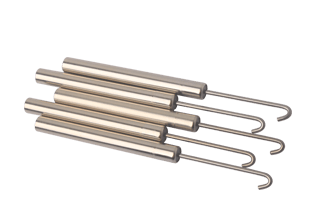

CR08-73-2-S/F Linear Damper
Deceleration technology without free travel
Max. force: 80±2N, Max. stroke: 65mm.
Buffering is an accepted standard for today’s drawers. CR08-73-2-S/F Coricher linear soft close hydraulic drawer dampers are maintenance-free and ready-to-install, and they are ideal for slowing down the moving parts when the drawers are closing or opening.
Coricher dampers have different damping types, including: compression damping, extension damping, spring return damping and bi-directional damping, depending on what you require.
Coricher high-standard linear hydraulic drawer dampers are used in sliding drawers, motion doors, lids and more.
TECHNICAL DATA
Max stroke:
53mm
Tube length:
73mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
