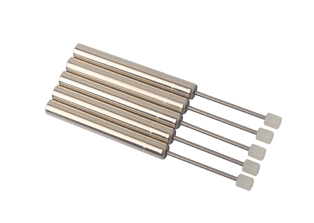

CR7.8-65-2.0-S/F Linear Damper
Speed reduction without free travel
Max. force: 80±2N, Max. stroke: 40mm.
Coricher CR7.8-65-2.0-S/F hydraulic dampers are ideal soft close hardware to make linear drive units slow down. A drawer that closes slowly and smoothly will last longer as it is not subject to physical abuse.
Coricher dampers are multi-purpose and thus adaptable to your requirements, though we are able to provide solutions for unstandardized applications. The damping effects can be single or bi-directional. The single-acting version is controllable in one direction only, with free-flow in the opposite direction. The bi-directional acting version generates both compression and extension forces.
The hydraulic dampers, as a soft close hardware are the best choice for drawer slides, sliding doors, , lids and other applications.
TECHNICAL DATA
Max stroke:
40mm
Tube length:
65mm
Max. force:
80±2N
Outer body diameter:
Ø7.8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
