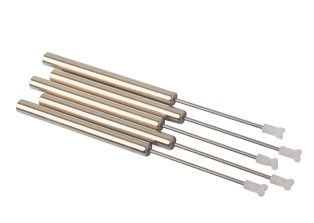

CR08-87-2.0-S/F Linear Damper
Damping technology for speed reduction without free travel
Max. force: 80±2N
Max stroke: 65mm
Drawer and door buffering has now become an indispensable standard, our dampers are high-performance and designed to withstand the rigors of everyday use. CR08-87-2.0-S/F Coricher high-performance hydraulic dampers are ideal damping components to decelerate the moving action of drawers. All our dampers are maintenance-free, ready to install.
We have a range of dampers with varying damping actions, including push-in damping, pull-out damping, spring return damping and bi-directional damping, depending on what is required.
Coricher high performance hydraulic dampers are used in sliding drawers, motion doors, lids and other applications.
TECHNICAL DATA
Max stroke:
65mm
Tube length:
87mm
Max. force:
80±2N
Outer body diameter:
Ø8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
