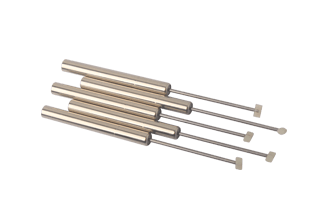

CR7.8-79.3-2.0-S/F Linear Damper
Speed control without free travel
Max. force: 80±2N
Max. stroke: 57mm
Buffering of the closing action of drawers is now has become a virtual standard. CR7.8-79.3-2.0-S/F soft close drawer buffers are maintenance-free and ready-to-install, and they are an ideal choice for slowing down a drawer’s closing or opening motion.
Coricher soft close drawer buffers have different damping levels of compression, extension damping, spring return damping and bi-directional damping, depending on your needs.
Coricher high level damping cylinders are used in sliding drawers, sliding doors , various closing lids and many other applications.
TECHNICAL DATA
Max stroke:
57mm
Tube length:
79.3mm
Max. force:
80±2N
Outer body diameter:
Ø7.8mm
Piston rod diameter:
Ø2mm
★Stable force performance:
√
Lifetime:
80,000 cycles
★Operating temperature:
-20 °C to +40 °C
Tube material:
Steel
Piston rod material:
Steel
Free-run:
No
PRODUCT DETAIL
Applications
Sliding drawers
Sliding doors
Sliding doors
